Socket Welding Flanges
Socket Welding Flanges
The socket welding flange is similar to a slip- on flange except it has a bore and s counter bore dimension. The counter bore is slightly larger than the O.D. of the matching pipe , allowing the pipe to be inserted into the flange similar to a slip-on flange. The diameter of the smaller bore is the same as the I.D. of the matching pipe A restriction is built into the bottom of the bore which sets as a shoulder for the pipe to rest on. This eliminates any restriction in flow when using a socket welding flange.
Blind Flanges
Blind Flanges
The blind flanges is a flange without a bore. It is uses to chose off the ends of a piping system or pressure vessel opening. It also permits easy access to the interior of a line or vessel once it has been sealed and must be reopened

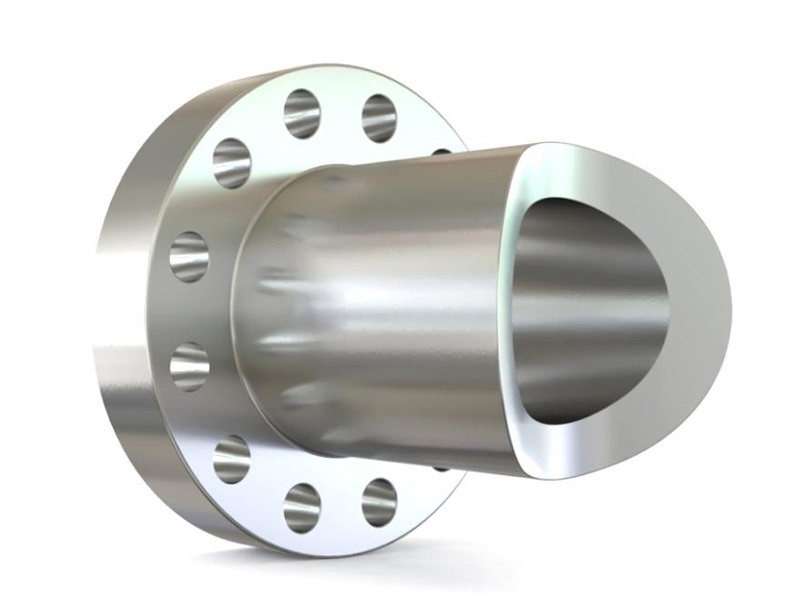

Welding Neck Flanges
Welding Neck Flanges
The welding neck flange is normally referred to "high hup" flange. It is designed to transfer stresses to the pipe. there by reducing high stress concentrations at the base of the flange. The welding neck flange is the best designed butt-welded flange of those currently available because of its inherent structural value. It is expensive because of the design.
Threaded (Screwed）Flanges
Threaded (Screwed）Flanges
The threaded flange is similar to the Slip-on flanges , but the bore is threaded. Its chief merit is that it van be assembled without welding, explaining its use in low pressure services at ordinary atmospheric temperatures, and in highly explosive areas where welding create a hazard
Slip-On Flanges
Slip-On Flanges
The slip on flange has a low hub because the pipe slips into the flanges prior to welding .it is welded both inside and out to provide sufficient strength and prevent leakage. slip on flanges are all bored slightly larger than the O.D. of the matching pipe. They are preferred over welding neck flanges by many users due to their lower initial cost, but final installation cost is probably not much less than that of the welding neck flange because of the additional welding involved.
Lap Joint Flanges
Lap Joint Flanges
The Lap Joint flange is practically identical to a slip-on flange except it has a radius at the intersection of the bore and flange face. This radius if necessary to have the flange accommodate a lap joint stub end. Normally, a lap joint flange and a lap joint stub end are mated together in an assembly system.
Learn more

Slip-On Flanges

The slip on flange has a low hub because the pipe slips into the flanges prior to welding .it is welded both inside and out to provide sufficient strength and prevent leakage. slip on flanges are all bored slightly larger than the O.D. of the matching pipe. They are preferred over welding neck flanges by many users due to their lower initial cost, but final installation cost is probably not much less than that of the welding neck flange because of the additional welding involved.
Retail price
0.0
元
Market price
0.0
元
Number of views:
1000
Product serial number
Category
Flange
Quantity
-
+
Stock:
0
1
Return Contact Us
Product Description
Parameters
Product Name
Flange
Material
F304/304L 304H F316/316L ,316H ,F321, F51, F53 ,F11,F22, F91, F9, Copper alloy,          Titanium alloy
Size
DN15~1500,1/2"~60"
Standard
ASME/ANSI B16.5 . EN/DIN2605.JIS,GB/T12459
Grade
150#~2500#,PN16~PN160
Brade
GUOXIANG
Packaging
plywood case with inside plastic bag or as per customer's requirement
Used
Petroleum, Chemical, Power, Gas, Metallurgy, Shipbuilding, Construction, Oil etc.
